Trapezium ZICK ZACK 25mm Concrete Spacer 1900 Per Pallet

35TZ.25 In Stock
Array

Conac Trapezium ZickZack Concrete Spacer Range

Name Code Brand Cover Length Material Max Bar Size Min Bar Size Reo Type Strength (kg) Style
Trapezium ZICK ZACK 90mm Concrete Spacer 290 Per Pallet 35TZ.90 CONAC 90 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 80mm Concrete Spacer 360 Per Pallet 35TZ.80 CONAC 80 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 75mm Concrete Spacer 410 Per Pallet 35TZ.75 CONAC 75 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 70mm Concrete Spacer 470 Per Pallet 35TZ.70 CONAC 70 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 65mm Concrete Spacer 500 Per Pallet 35TZ.65 CONAC 65 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 60mm Concrete Spacer 520 Per Pallet 35TZ.60 CONAC 60 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 55mm Concrete Spacer 700 Per Pallet 35TZ.55 CONAC 55 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 50mm Concrete Spacer 555 Per Pallet 35TZ.50 CONAC 50 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 45mm Concrete Spacer 820 Per Pallet 35TZ.45 CONAC 45 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 40mm Concrete Spacer 980 Per Pallet 35TZ.40 CONAC 40 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 35mm Concrete Spacer 1150 Per Pallet 35TZ.35 CONAC 35 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 30mm Concrete Spacer 1300 Per Pallet 35TZ.30 CONAC 30 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 25mm Concrete Spacer 1900 Per Pallet 35TZ.25 CONAC 25 870 Concrete Any Any Bar,Mesh 300 Continuous Order
Trapezium ZICK ZACK 100mm Concrete Spacer 220 Per Pallet 35TZ.100 CONAC 100 870 Concrete Any Any Bar,Mesh 300 Continuous Order

Overview

Product Description

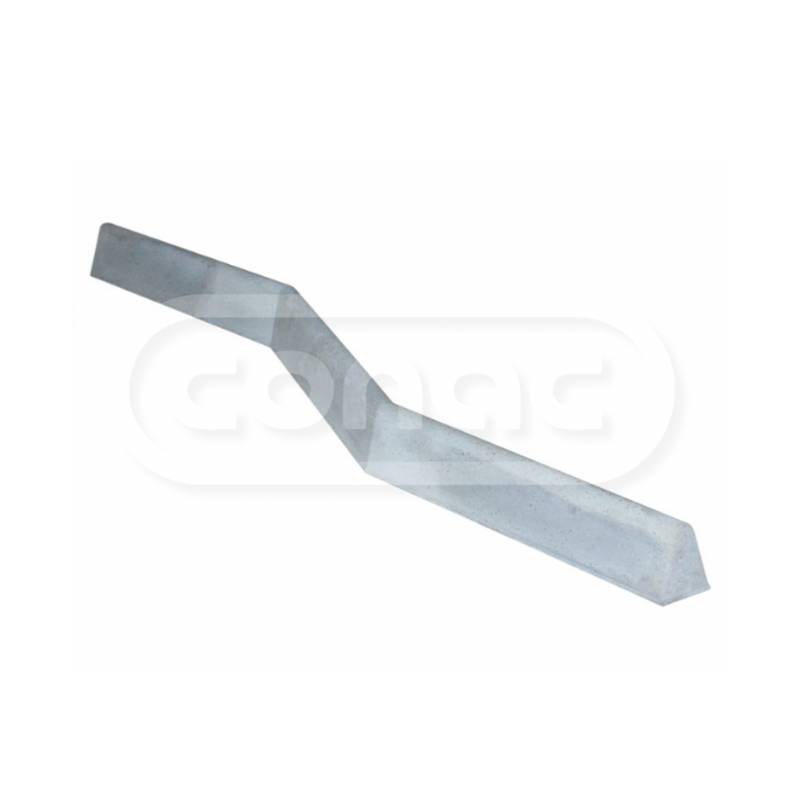

Zick Zack is a continuous concrete spacer that overcomes the issue of a continuous spacer being too long in one orientation or direction. Even though they are 870 mm long, each third is less than the 350 mm limit that Australian state governments prescribe as a limit for continuous spacers.
CONAC Zick Zack’s being continuous in nature they provide support for both bar and mesh. The primary advantage of the Zick Zack concrete spacer is that they have a high load capacity and are corrosion resistant.
Why are Concrete Spacers popular?
Concrete spacers and bar supports are made of the same material as the poured concrete, so thermal expansion and contraction are equal. And because they are the same material, the concrete and spacers will bond. No gaps!
Concrete spacers and bar supports help maintain the material integrity and uniformity of the concrete and provide a cover over the reinforcement that protects against corrosion.
Compliance Standards of Actech’s Concrete Spacer
CONAC Ausfix Bone Concrete Spacers comply with the AS:NZS 2425:2015 Standard with a 300kg rating.
The spacers fulfill the requirements of all exposure classes. Our concrete mix is tested by a NATA laboratory on a regular basis to check for:

Strength
Sorptivity
Chloride Permeability (RCPT)
Volume of Permeable Voids (VPV)

As such, CONAC Ausfix Bone Concrete Spacers comply with all required state government road and bridge requirements across Australia. Certificates of compliance of the concrete mix and product are available on request.
Product Advantages

High load capacity concrete (complies with the AS:NZS 2425:2015 Standard with a 300 kg Rating)
Available with standard tie wire for all covers
Ideal for concrete elements in roads, bridges and other infrastructure
Cement-bound spacers, no heat/cold deformation
Absolute guarantee of consistent concrete cover
Various attachment options for quick and easy use
Homogeneous bond resulting in no hairline cracks between spacer and concrete
Fire-resistant according to the maximum requirements of DIN 4102 – Class A1 (non-flammable)

Specifications

SKU 35TZ.25
Shipping Weight 0 kg
Brand CONAC
Cover 25
Length 870
Material Concrete
Max Bar Size Any
Min Bar Size Any
Reo Type Bar, Mesh
Strength (kg) 300
Style Continuous

Documents

Zick Zack TDS (Technical Data)
