Conac Ausfix HD Range

Name Code Brand Cover Material Max Bar Size Min Bar Size Reo Type Strength (kg) Style
AUSFIX HD 95mm 35AUSHD.95 CONAC 95 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 90mm 35AUSHD.90 CONAC 90 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 85mm 35AUSHD.85 CONAC 85 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 80mm 35AUSHD.80 CONAC 80 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 75mm 35AUSHD.75 CONAC 75 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 70mm 35AUSHD.70 CONAC 70 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 65mm 35AUSHD.65 CONAC 65 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 60mm 35AUSHD.60 CONAC 60 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 55mm 35AUSHD.55 CONAC 55 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 50mm 35AUSHD.50 CONAC 50 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 45mm 35AUSHD.45 CONAC 45 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 40mm ROUND 35AUSHD.40R CONAC 40 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 40mm 35AUSHD.40 CONAC 40 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 35mm 35AUSHD.35 CONAC 35 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 30mm 35AUSHD.30 CONAC 30 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 25mm 35AUSHD.25 CONAC 25 Concrete 36 4 Bar 300 Single Order
AUSFIX HD 100mm 35AUSHD.100 CONAC 100 Concrete 36 4 Bar 300 Single Order

Overview

Product Description

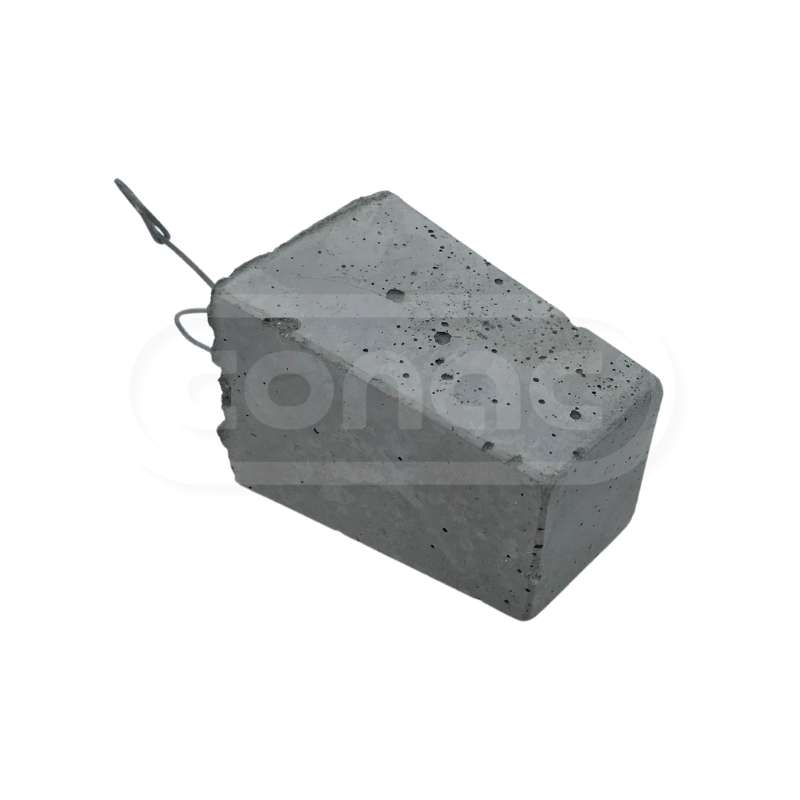

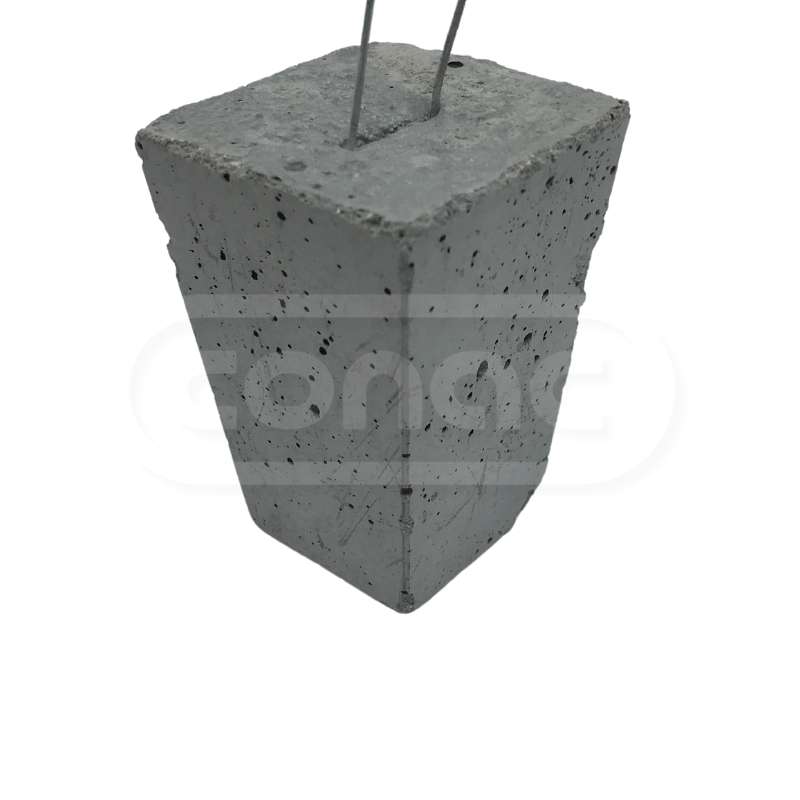

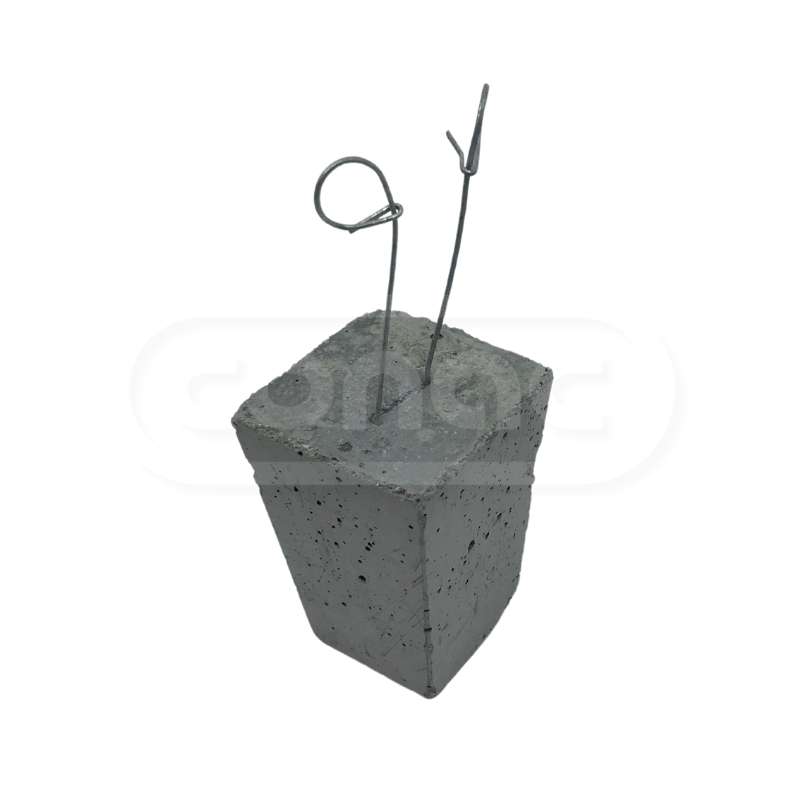

CONAC Ausfix HD are manufactured with galvanised wires for tying the reinforcement to the spacers. The Ausfix HD are also known as aspros.

The primary advantage of the CONAC concrete spacer is that they have a high load capacity and are corrosion resistant. These concrete spacers provide support for both reinforcing mesh and reinforcement bars, always ensuring that the correct cover is achieved.

Ausfix HD spacers are available in sizes from 25 mm to 100 mm cover. Their high load capacity means they are ideal for the construction of roads, bridges and external balconies. Furthermore, if your project requires concrete spacers to have longer tie wires, CONAC provides you this option.
Why are Concrete Spacers popular?
Concrete spacers and bar supports are made of the same material as the poured concrete, so thermal expansion and contraction are equal. And because they are the same material, the concrete and spacers will bond. No gaps!

Concrete spacers and bar supports help maintain the material integrity and uniformity of the concrete and provide a cover over the reinforcement that protects against corrosion.
Compliance Standards
CONAC Ausfix Bone Concrete Spacers comply with the AS:NZS 2425:2015 Standard with a 300kg rating.

The spacers fulfill the requirements of all exposure classes. Our concrete mix is tested by a NATA laboratory on a regular basis to check for:

Strength
Sorptivity
Chloride Permeability (RCPT)
Volume of Permeable Voids (VPV)

As such, CONAC Ausfix Bone Concrete Spacers comply with all required state government road and bridge requirements across Australia. Certificates of compliance of the concrete mix and product are available on request.
Product Advantages

High load capacity concrete (complies with the AS:NZS 2425:2015 Standard with a 300 kg Rating)
Available with standard tie wire for all covers
Ideal for concrete elements in roads, bridges and other infrastructure
Cement-bound spacers, no heat/cold deformation
Absolute guarantee of consistent concrete cover
Various attachment options for quick and easy use
Homogeneous bond resulting in no hairline cracks between spacer and concrete
Fire-resistant according to the maximum requirements of DIN 4102 – Class A1 (non-flammable)

Specifications

SKU 35AUSHD.75
Shipping Weight 0.29977 kg
Brand CONAC
Cover 75
Material Concrete
Max Bar Size 36
Min Bar Size 4
Reo Type Bar
Strength (kg) 300
Style Single

Documents

Ausfix HD TDS (Technical Data)
