Bolster Deck Rail 90mm – 750mm Long

33BDR.090 In Stock
Array

Bolster Deck Rail Range

Name Code Brand Cover Length Material Max Bar Size Min Bar Size Reo Type Strength (kg) Style
Bolster Deck Rail BASE 750mm Long 33BDR.BASE CONAC - 750 Plastic Any Any Base - Continuous Order
Bolster Deck Rail 95mm - 750mm Long 33BDR.095 CONAC 95 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 90mm - 750mm Long 33BDR.090 CONAC 90 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 85mm - 750mm Long 33BDR.085 CONAC 85 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 80mm - 750mm Long 33BDR.080 CONAC 80 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 75mm - 750mm Long 33BDR.075 CONAC 75 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 70mm - 750mm Long 33BDR.070 CONAC 70 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 65mm - 750mm Long 33BDR.065 CONAC 65 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 60mm - 750mm Long 33BDR.060 CONAC 60 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 55mm - 750mm Long 33BDR.055 CONAC 55 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 50mm - 750mm Long 33BDR.050 CONAC 50 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 45mm - 750mm Long 33BDR.045 CONAC 45 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 40mm - 750mm Long 33BDR.040 CONAC 40 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 35mm - 750mm Long 33BDR.035 CONAC 35 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 30mm - 750mm Long 33BDR.030 CONAC 30 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 25mm - 750mm Long 33BDR.025 CONAC 25 750 Plastic Any Any Bar,Mesh 60 Continuous Order
Bolster Deck Rail 100mm - 750mm Long 33BDR.100 CONAC 100 750 Plastic Any Any Bar,Mesh 60 Continuous Order

Overview

Product Description

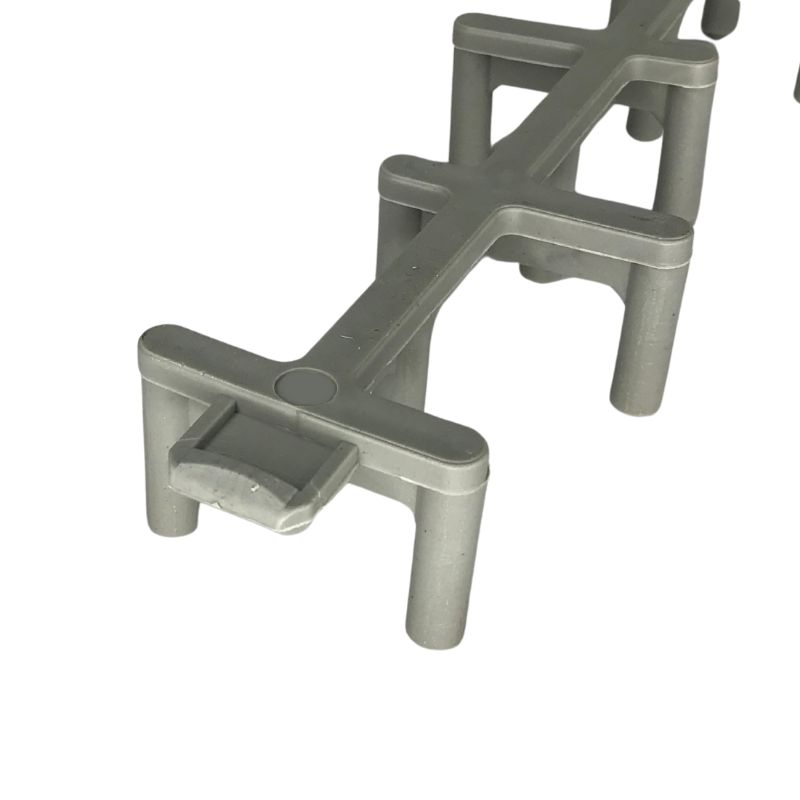

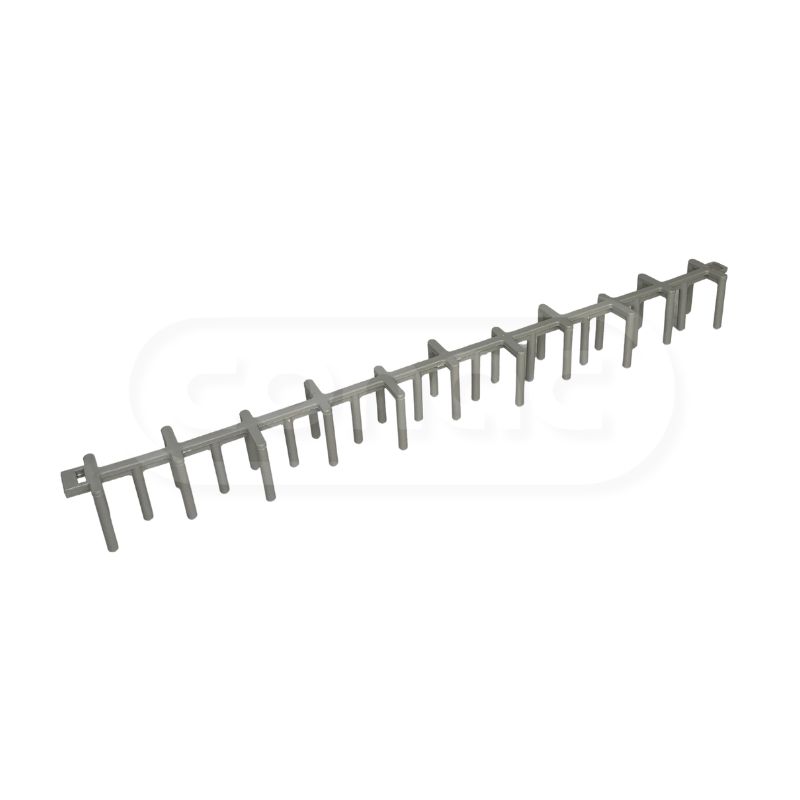

Plastic Deck Rail or Bolster Deck Rail are a 750 mm long continuous spacers for formwork applications. In addition to providing minimal exposure, these plastic deck rails are stable and are highly capable of spreading the load as compared to individual spacers.

In addition to the sets of vertical legs at 75mm centers, the centrally positioned support legs provide the deck rail with the stability and strength required on construction sites.
Another key design feature is that the male and female connections at either end of the plastic deck rail allow the user to connect multiple deck rails to any given length.

Fields of Application

Suspended decks
Precast or Tilt-up panels
In situ and precast beams
Slabs on blinding concrete

Key Features

Strong, sturdy & stable design
Male & Female connection for fast assembly on-site
Available in many sizes
Deck Rail base for slab-on-ground applications is available separately
Complies with AS/NZS 2425:2015 with a 120 kg rating
